MAGNI EAB12AC 2025

-- English --
- Type of fuel: Electric
- Colour: Red
- Drive: Wheel
- Empty weight: 7080 kg
- Make of engine: Magni
- Lifting capacity: 227 kg
- Working height: 1.180 cm
- CE mark: yes
- General condition: very good
- Technical condition: very good
- Visual appearance: very good
- Delivery terms: EXW
- Max. horizontal reach: 710 m
- Max swing of arm in degrees: 355
- Max swing of platform in degrees: 180
- Transport dimensions (LxWxH): 3.89×1.20×2.29
- Production country: IT
Please contact us for more information.

-- Deutsch --
- Kraftstofftyp: Elektrisch
- Farbe: Red
- Antrieb: Rad
- Leergewicht: 7080 kg
- Motormarke: Magni
- Hubkapazität: 227 kg
- Arbeitshöhe: 1.180 cm
- CE-Kennzeichnung: ja
- Allgemeiner Zustand: sehr gut
- Technischer Zustand: sehr gut
- Optischer Zustand: sehr gut
- Lieferbedingungen: EXW
- Max. horizontale Reichweite: 710 m
- Max. Armausschlag in Grad: 355
- Max. Ausschlag der Arbeitsbühne in Grad: 180
- Transportabmessungen (L x B x H): 3.89×1.20×2.29
- Produktionsland: IT
Setzen Sie sich fur nahere Auskunfte mit uns in Verbindung.

-- Nederlands --
- Brandstofsoort: Elektrisch
- Kleur: Red
- Aandrijving: Wiel
- Ledig gewicht: 7080 kg
- Merk motor: Magni
- Hefcapaciteit: 227 kg
- Werkhoogte: 1.180 cm
- CE markering: ja
- Algemene staat: zeer goed
- Technische staat: zeer goed
- Optische staat: zeer goed
- Leveringsvoorwaarden: EXW
- Max. horizontale reikwijdte: 710 m
- Maximaal draaibereik in graden: 355
- Maximaal draaibereik platform: 180
- Afmetingen (LxBxH) (m): 3.89×1.20×2.29
- Productieland: IT
=== MAIN SPECIFICATIONS ===
Year: 2025
Operating hours: 0 (new)

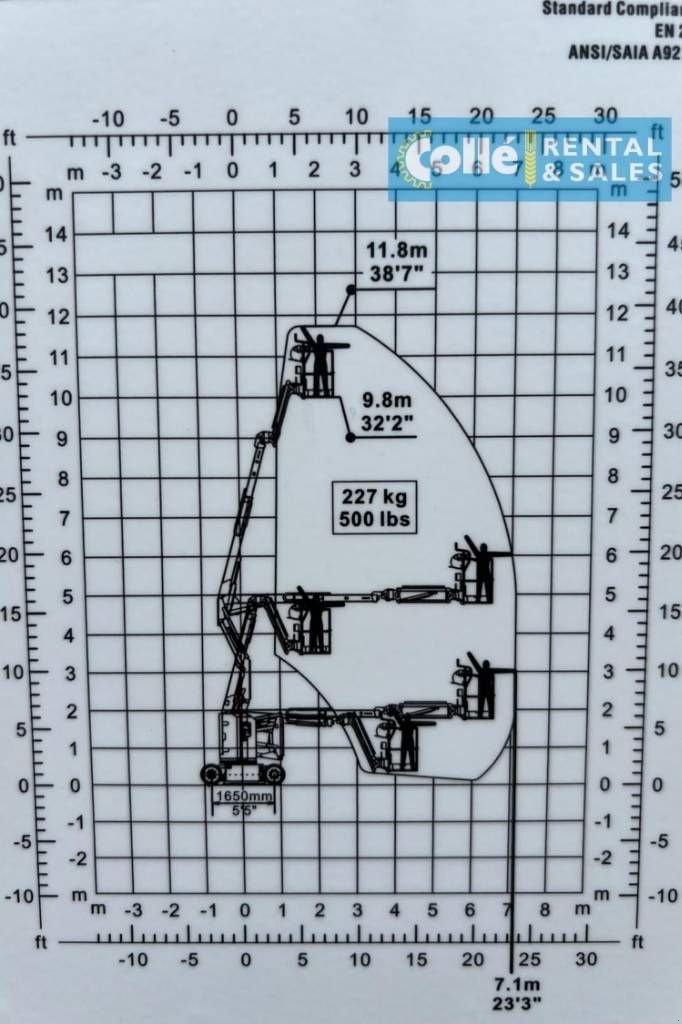

Working height: 11.80 m
Maximum horizontal outreach: 7.10 m
Platform capacity: 227 kg
Platform dimensions (L x W): 1,170 x 760 mm
Superstructure rotation: 355°
Platform rotation: Yes (180°)
Boom type: Articulating
Jib: Yes (telescopic - vertical rotation +74° / -65°)
Power source: Electric (48V / 280Ah lead-acid battery with 48V / 35A charger)
Drive system: 2WD (no four-wheel drive)
Tyres: Foam-filled / Non-marking
Stabilizers: No
Emission class: 0 (zero-emission)
Weight: 7,080 kg
CE certification: Yes

=== HIGHLIGHTS ===
New model - production year 2025, never used
CE certified with complete documentation included
Ready for immediate operation and transport
Comprehensive technical documentation available

=== CONDITION ===
Brand-new machine - 2025 production year, factory tested and CE certified.
Available for inspection upon request.

=== LOCATION & DELIVERY ===
Located in Sittard, The Netherlands.
Worldwide delivery available.
Price on request (EXW / excl. VAT).

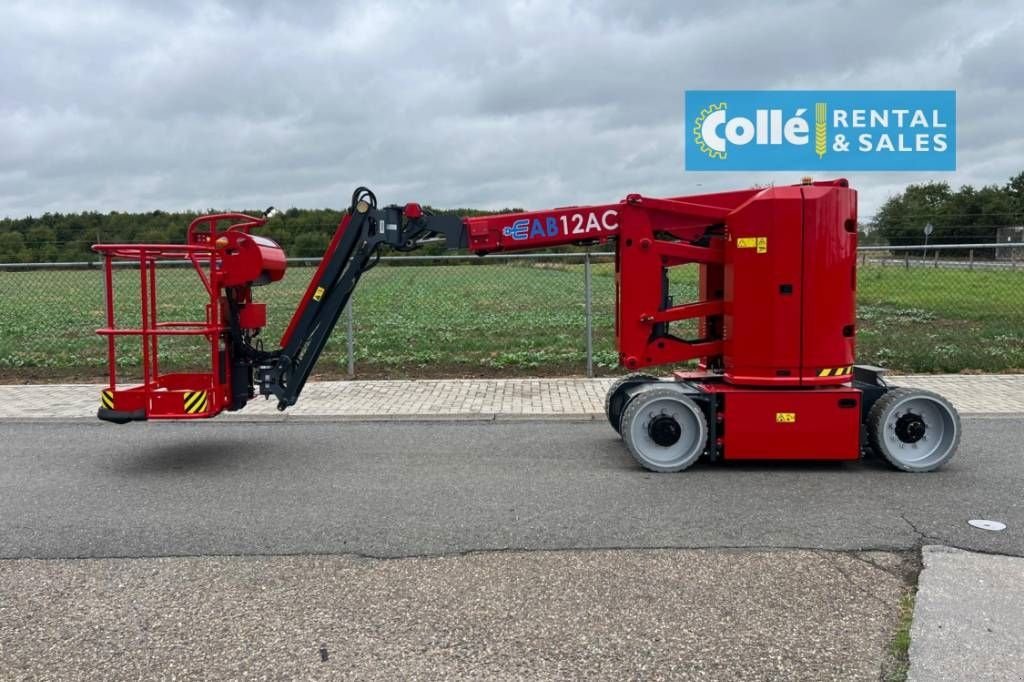

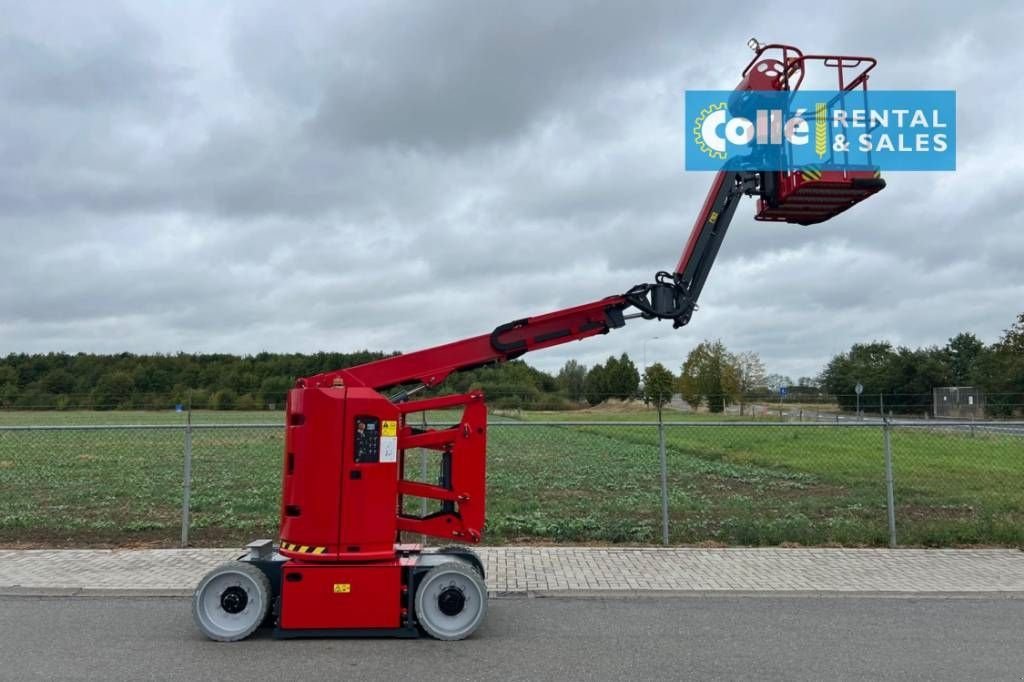

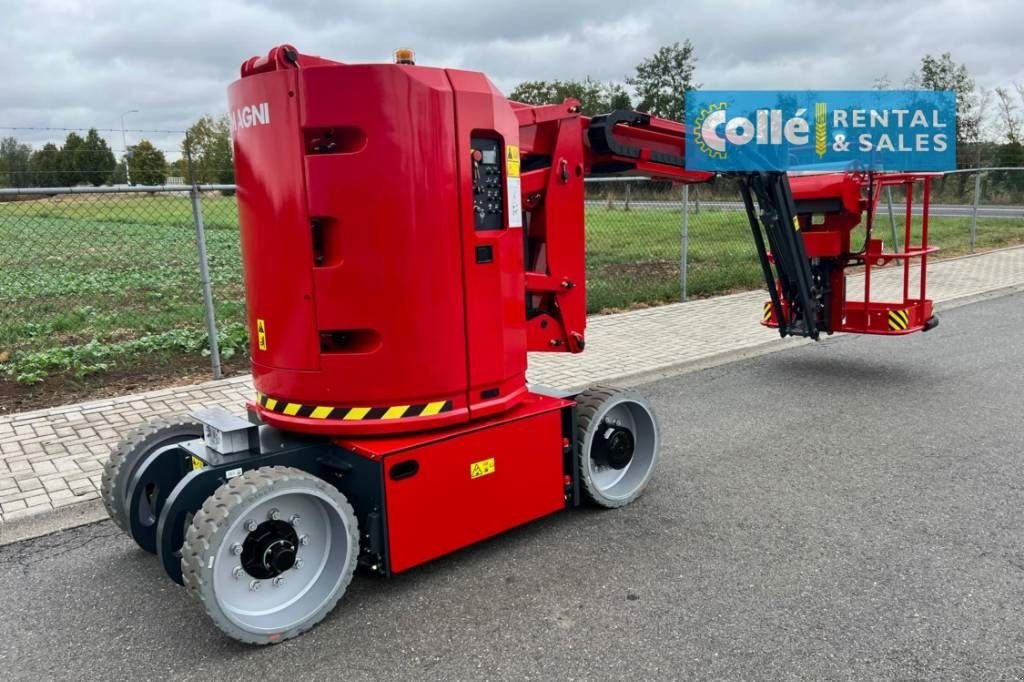

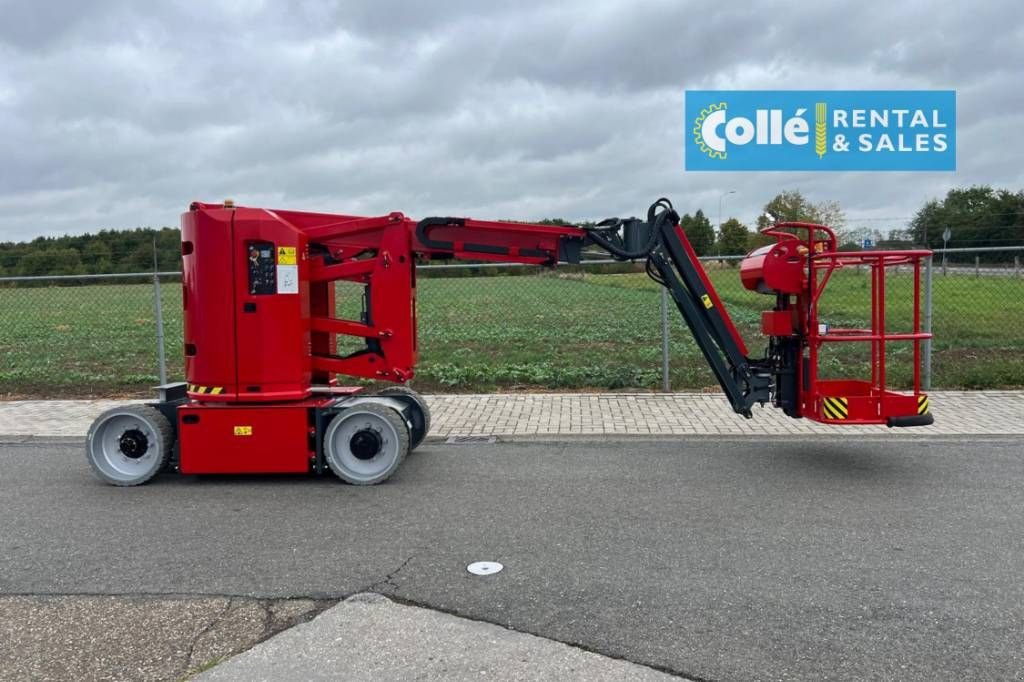

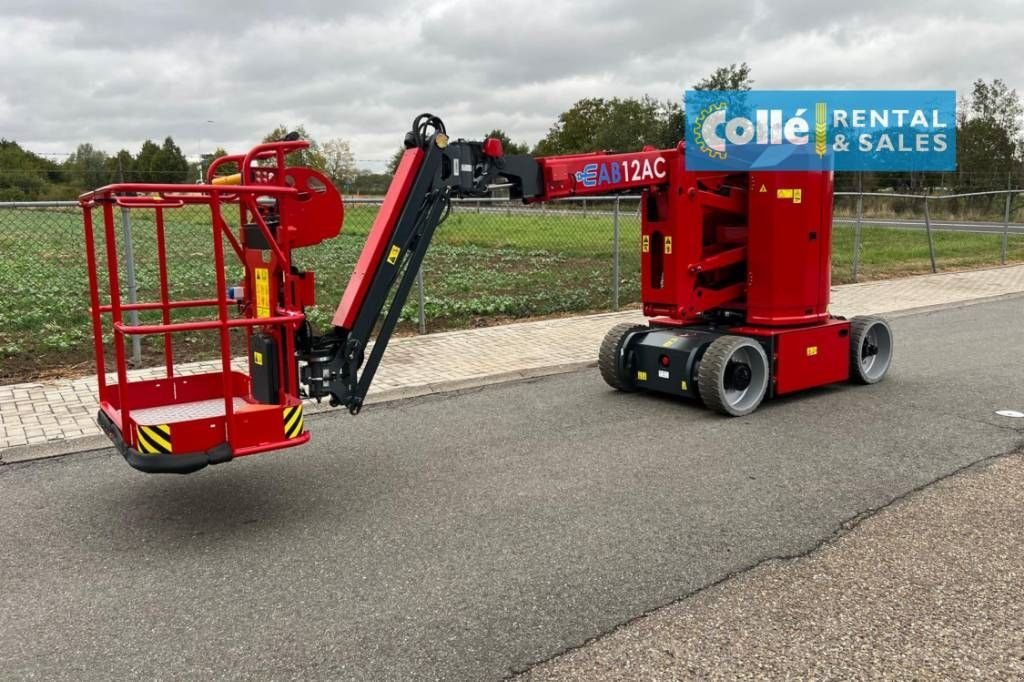

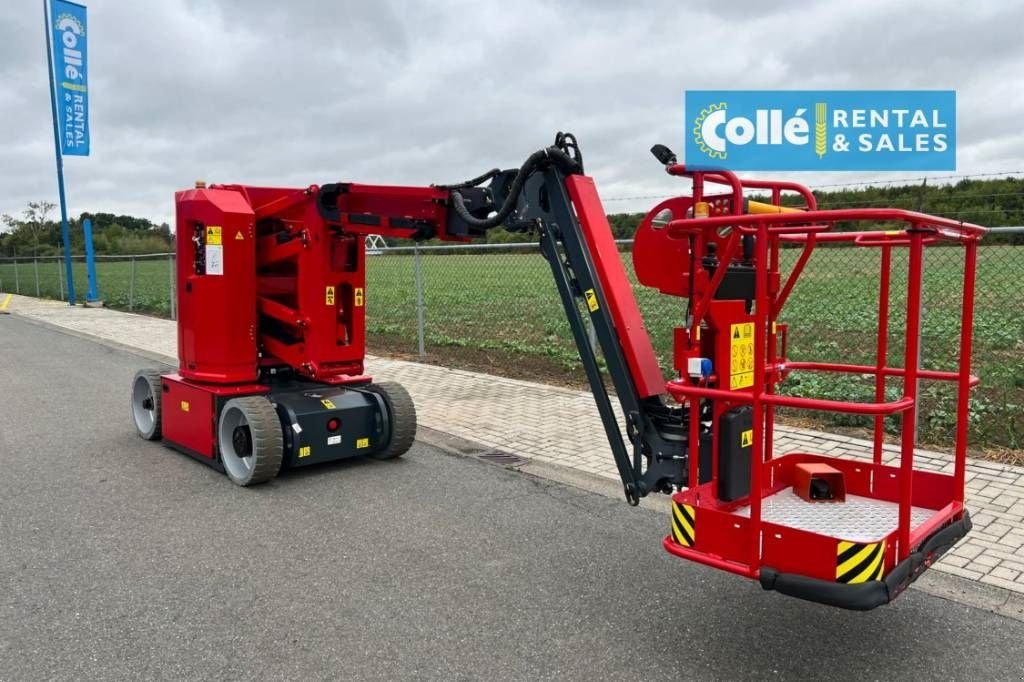

The Magni EAB 12 AC is an electric articulating boom lift offering a working height of 11.8 meters and a horizontal outreach of 7.1 meters.
Powered by a zero-emission 48V battery system, it is perfectly suited for both indoor and outdoor applications, combining quiet operation with exceptional maneuverability.
Equipped with a telescopic jib (+74° / -65°), non-marking tyres, and 180° platform rotation, this model ensures precise positioning and maximum operator comfort.
Ideal for maintenance, installation, and industrial work.
All Colle Rental & Sales machines are CE certified, fully tested, and ready for immediate operation.
Spare parts and professional technical support available upon request.

=== DELIVERY ===
Crane loading available on request for smooth and safe transport.
Flexible worldwide shipping options tailored to your destination and logistics needs.
All transport is professionally handled by the Colle Rental & Sales logistics team.

4x2 drive

Automatic braking system

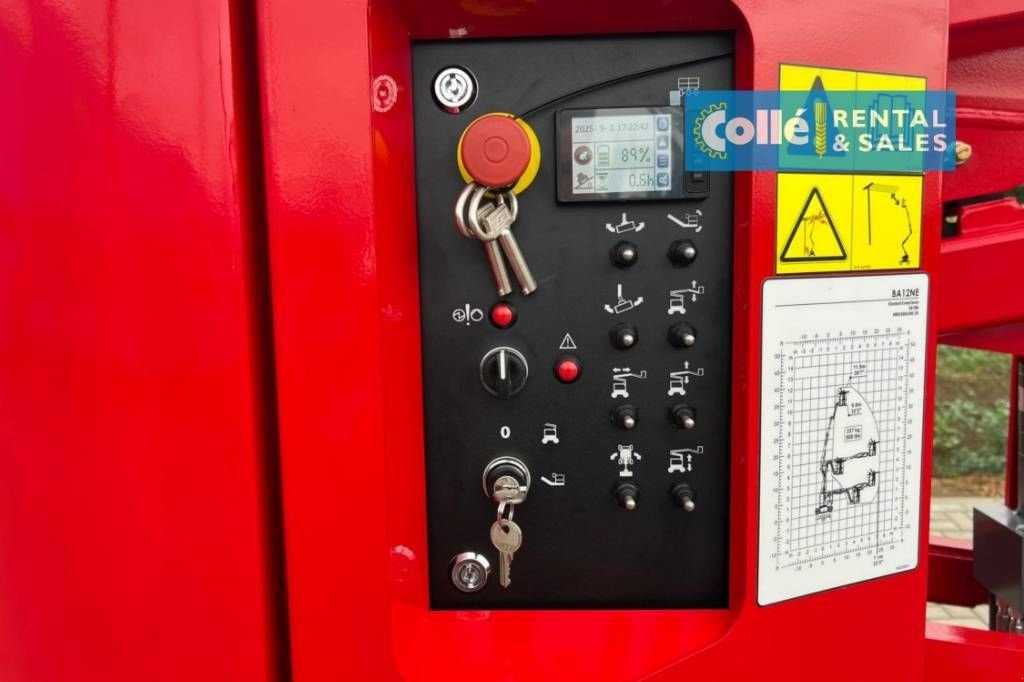

Proportional controls

Rotating beacon
Horn
Hour meter
Work light
Foot switch
Load indicator
Lifting and anchoring points
